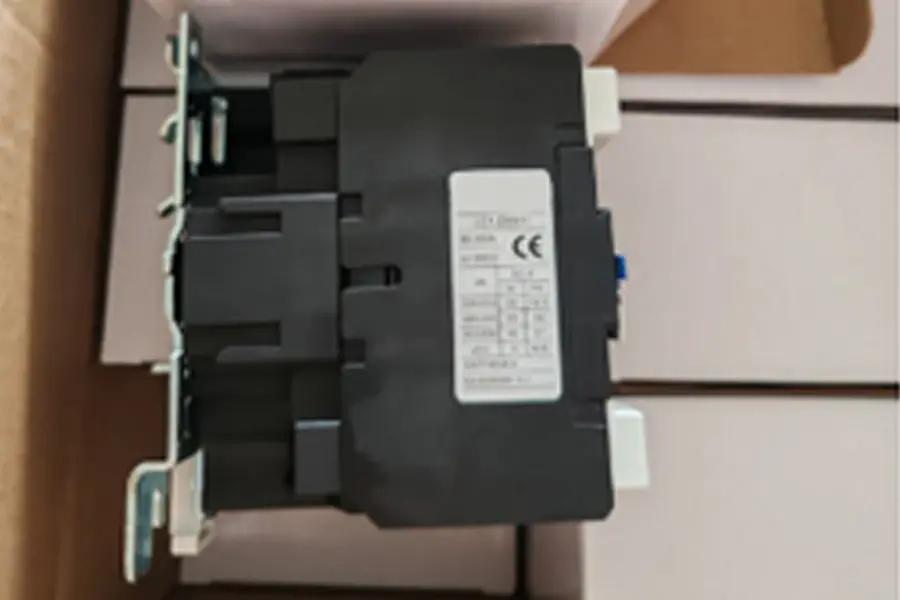

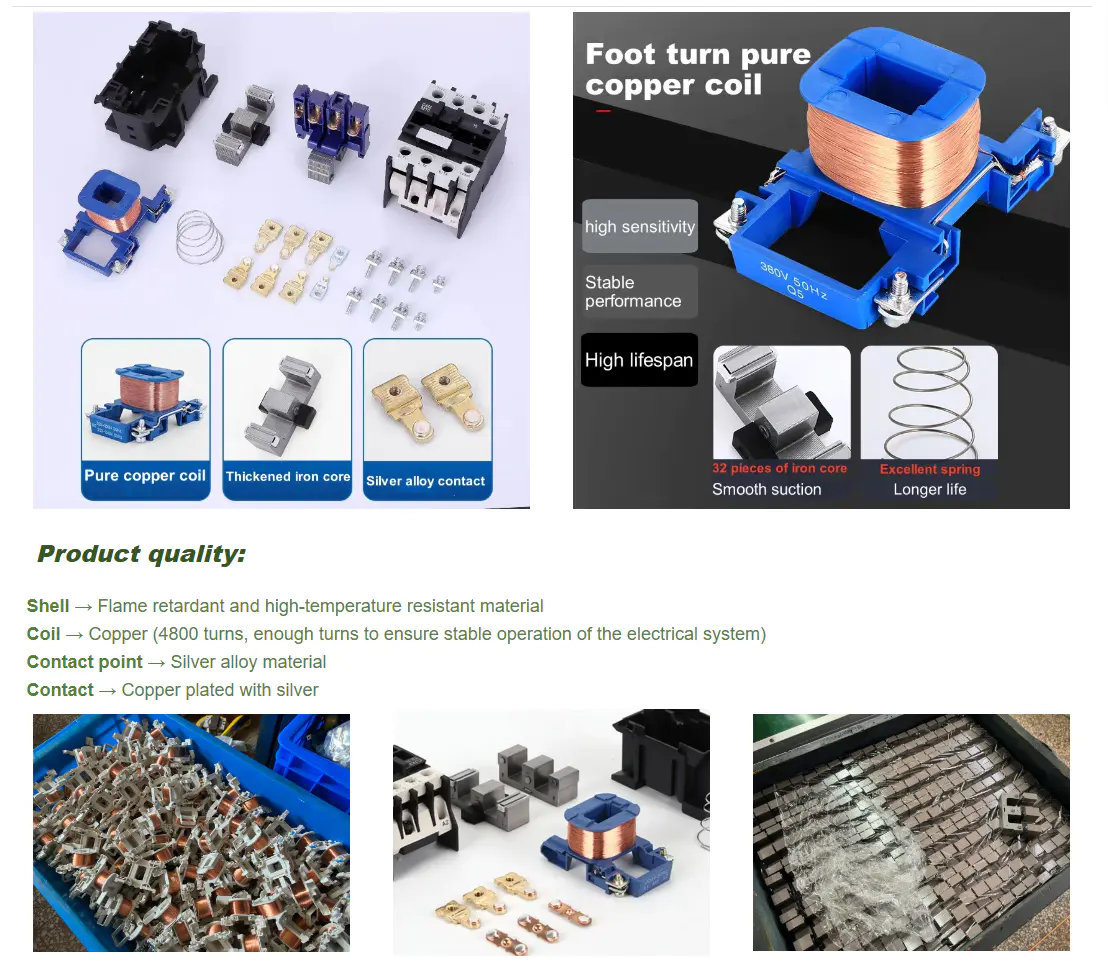

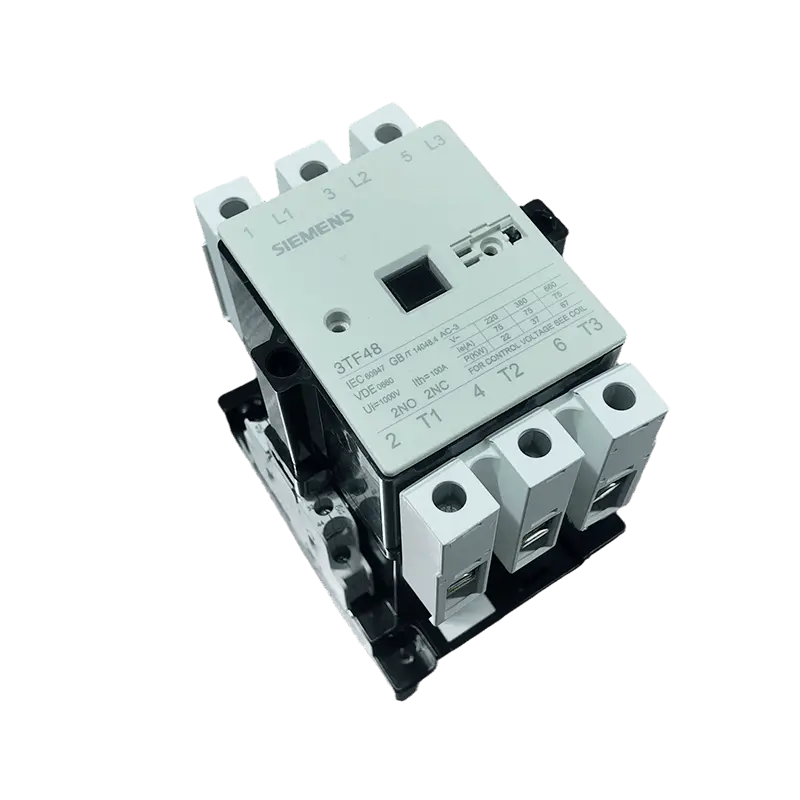

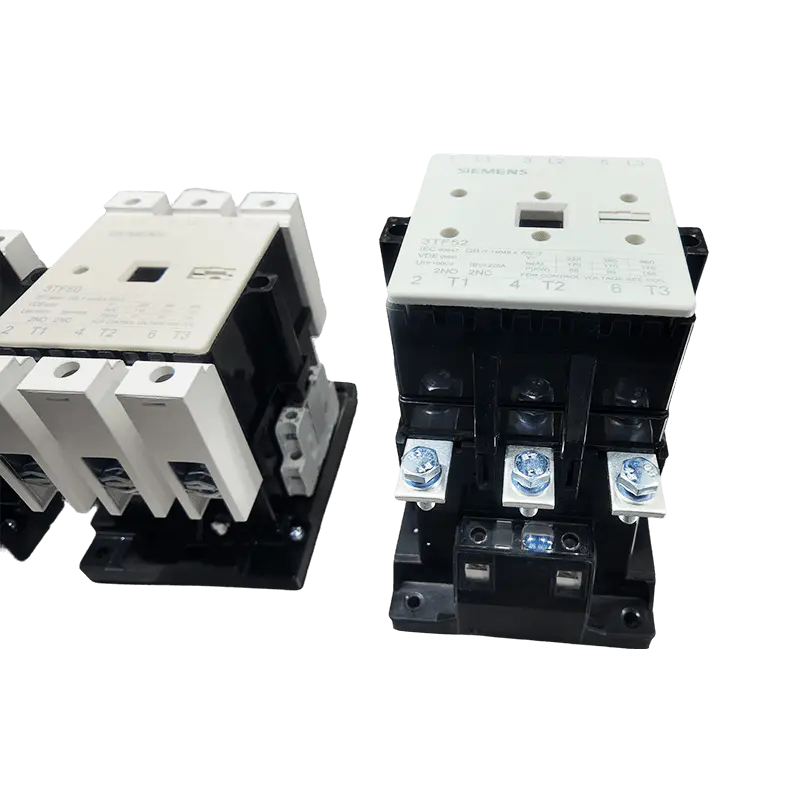

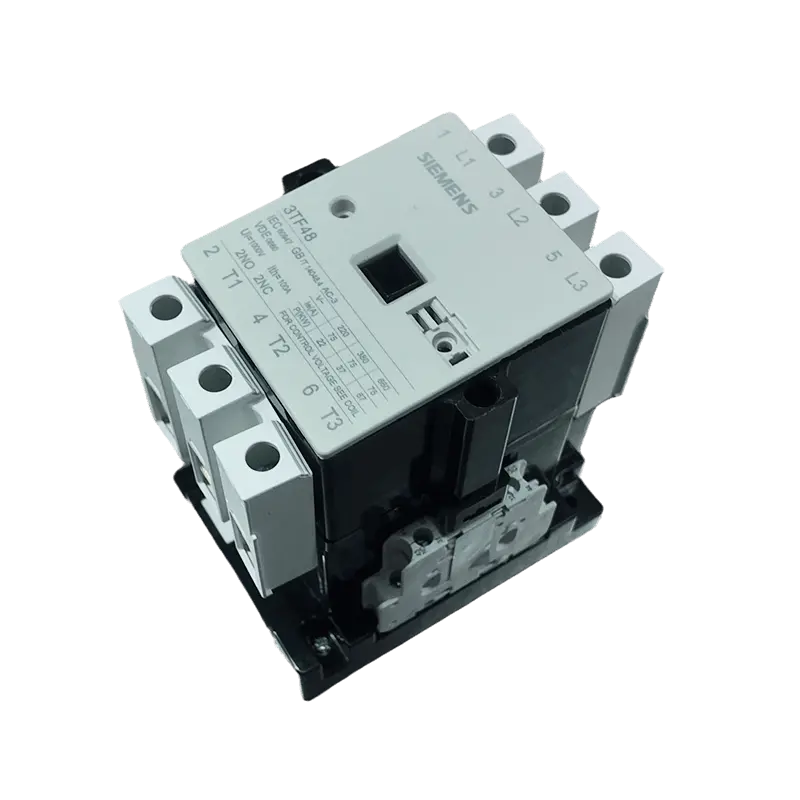

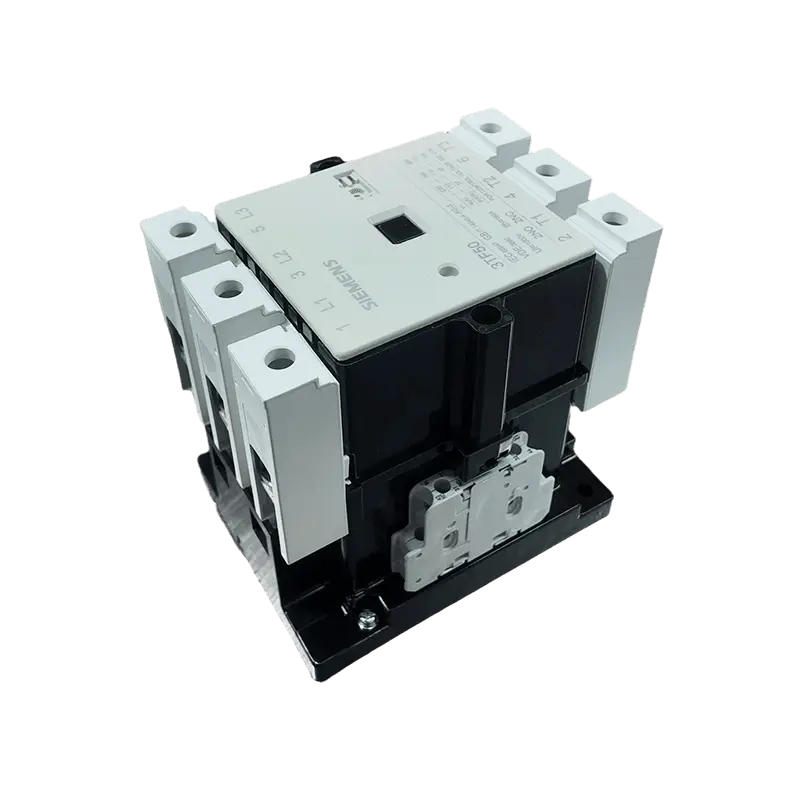

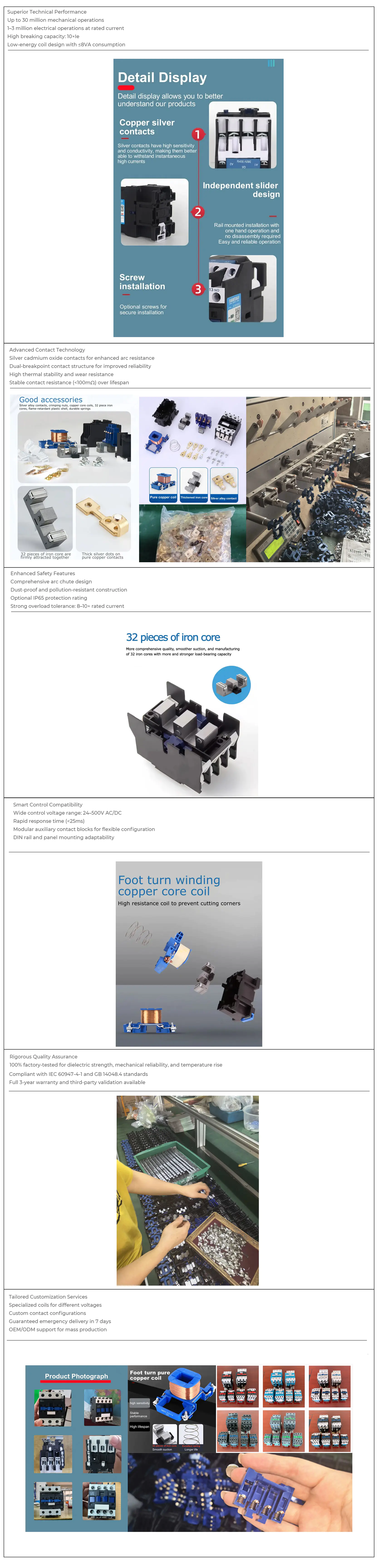

Apabila penyentuh AC dihidupkan, gegelung dalaman akan menjana medan magnet, menyebabkan teras besi bergerak dan teras besi pegun tertarik bersama, memacu sistem sesentuh untuk menghubungi sesentuh pegun dan menjalankan litar. Selepas gegelung kehilangan kuasa, daya sedutan hilang, dan spring set semula akan menolak teras besi yang bergerak, menyebabkan sesentuh terpisah dan litar putus.
-

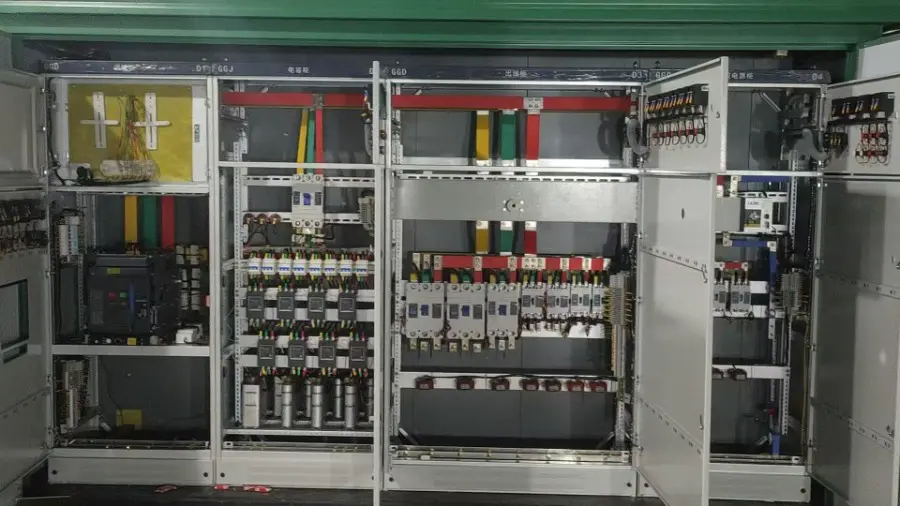

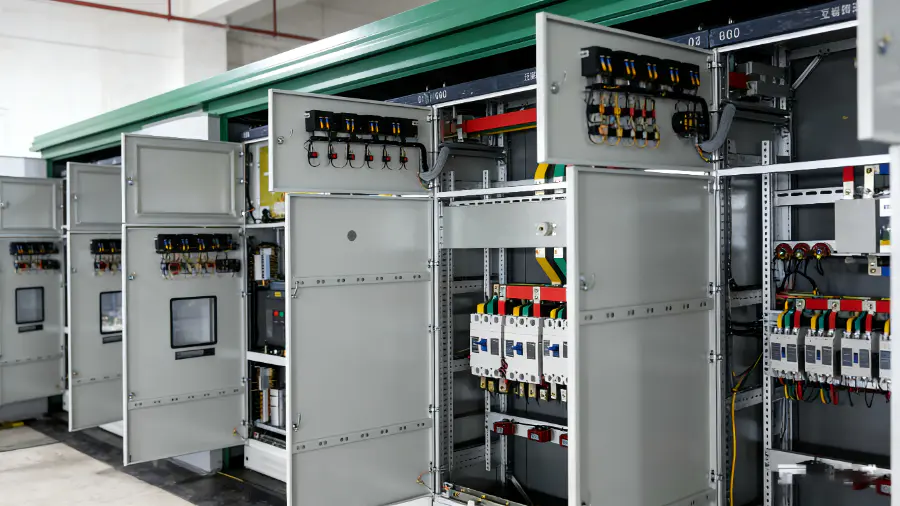

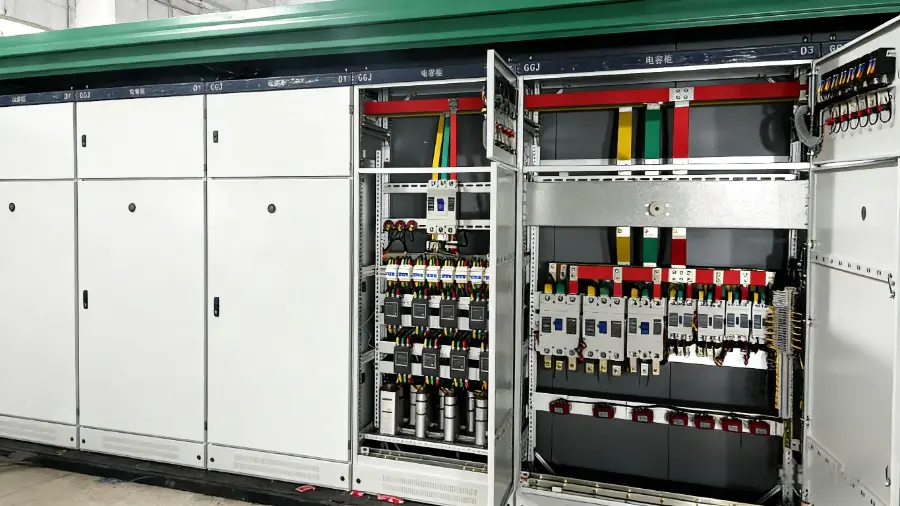

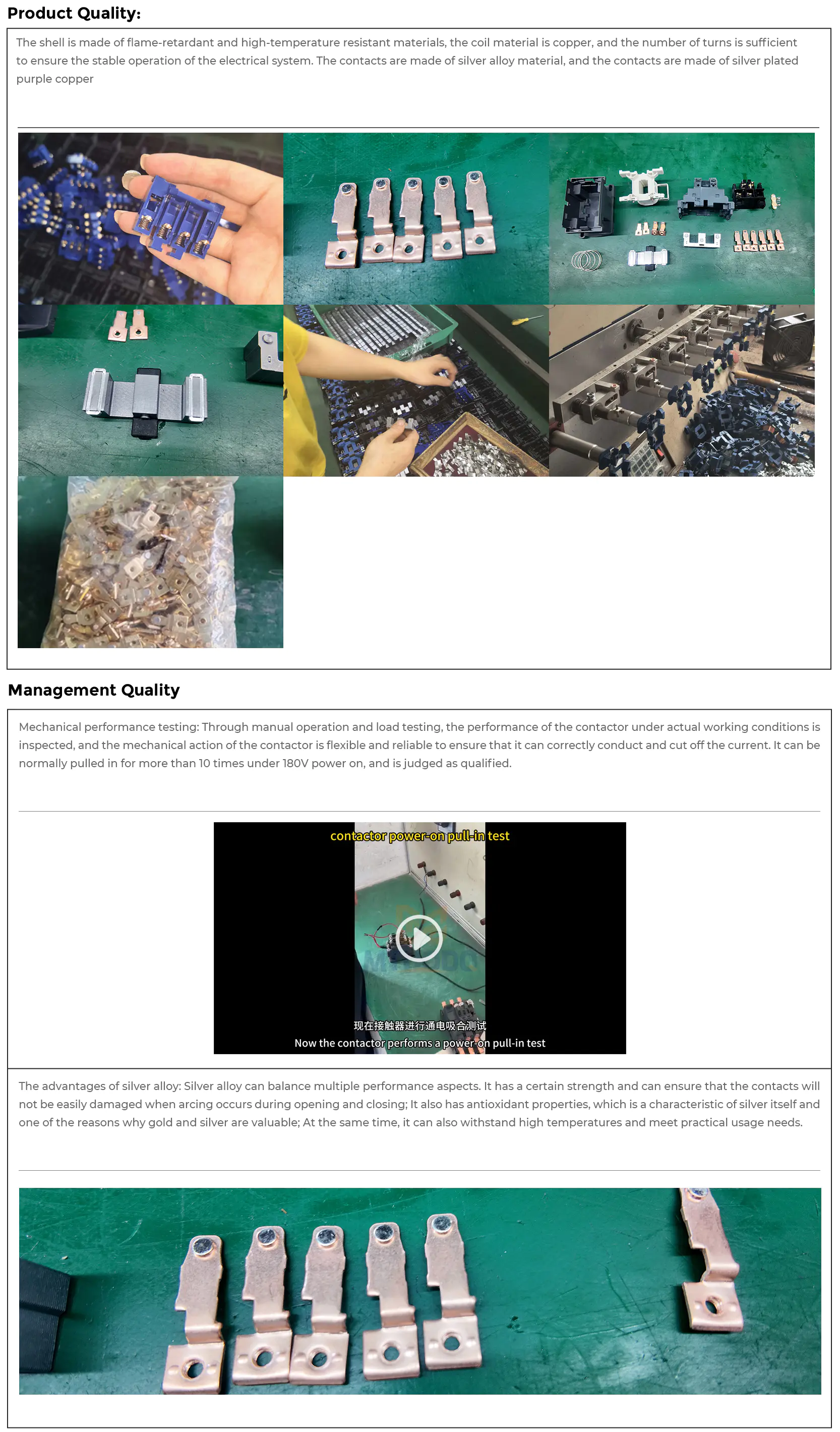

Project Cases
-

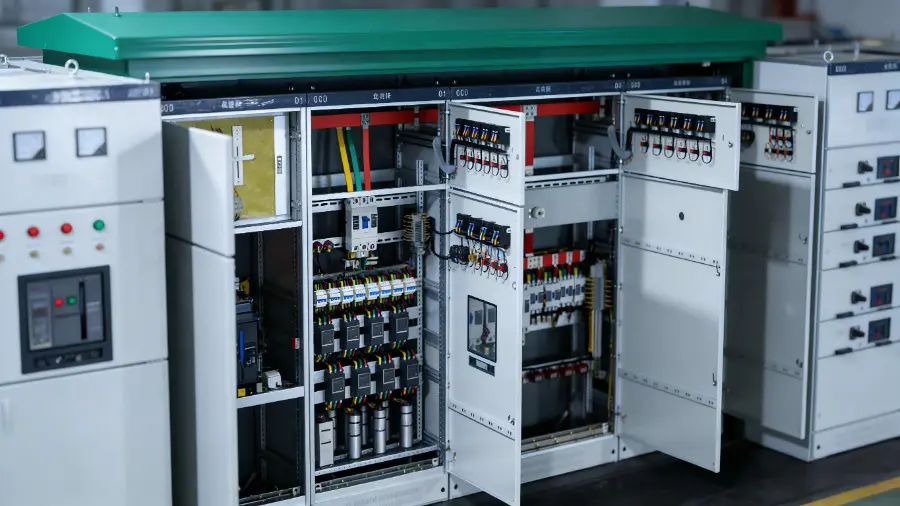

Project Cases
-

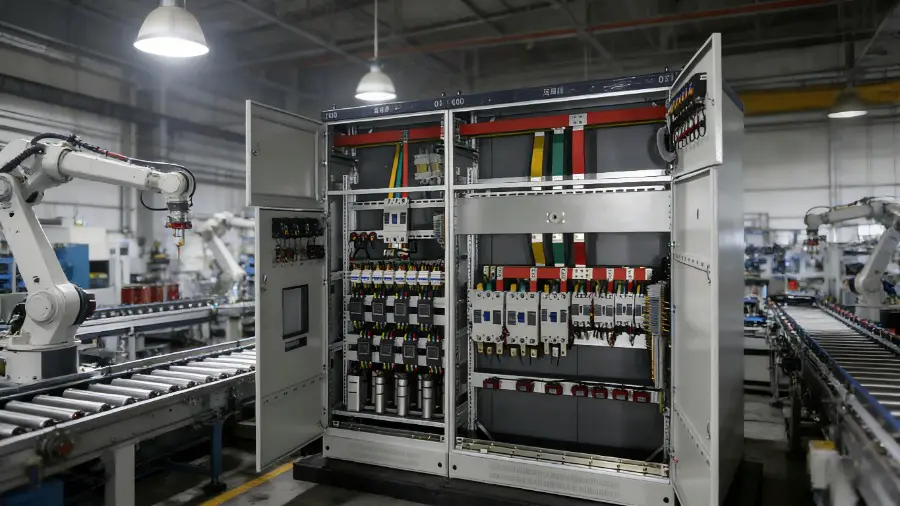

Project Cases
-
Project Cases
-
Project Cases

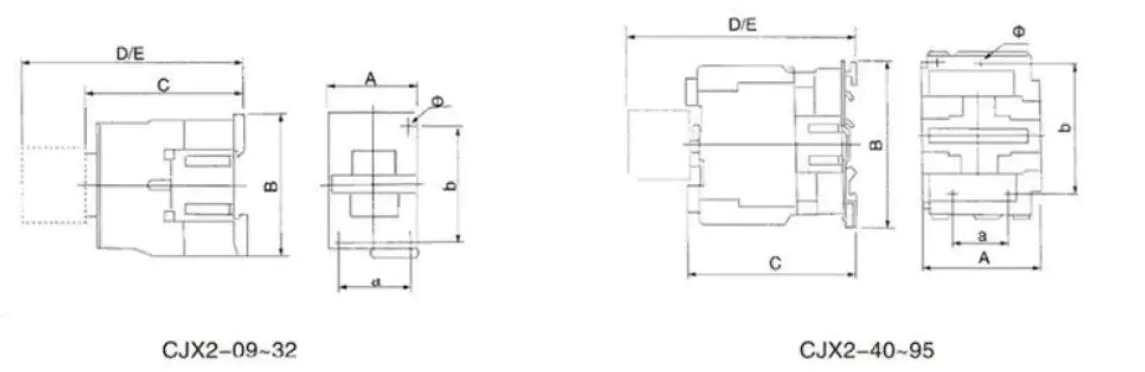

| MODEL | A | B | C | D | E | a | b | Φ |
| D09~12 | 47 | 76 | 82 | 11 | 133 | 34/35 | 50/60 | 4.5 |
| D18 | 47 | 76 | 87 | 118 | 138 | 34/35 | 50/60 | 4.5 |
| D25 | 57 | 86 | 95 | 126 | 146 | 40 | 48 | 4.5 |
| D32 | 57 | 86 | 100 | 131 | 151 | 40 | 48 | 4.5 |
| D40~65 | 77 | 129 | 116 | 145 | 165 | 40 | 100/110 | 6.5 |
| D80~95 | 87 | 129 | 127 | 175 | 195 | 40 | 100/110 | 6.5 |
| Jenis Model | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 | |
| Arus kerja berkadar (A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
| Motor tiga fasa AC－3 aras (kw) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | - | - | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | - | - | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 | |
| RatedheatingcurrentIth(A) | 20 | 20 | 30 | 32 | 40 | 50 | 60 | 80 | 125 | 125 | |
| Jangka hayat elektrik (10000 kitaran) | AC3 | 100 | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 60 |
| AC4 | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 | |
| Jangka hayat mekanikal (10000 kitaran) | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 | |
| Model kenalan | 3P NO | 3P NC NO | |||||||||
| Model | Arus berkadar (A) | Kenalan utama | Kontak bantu | Kuasa beban satu fasa (kW) | Kuasa beban tiga fasa (kW) |
| CJX2-0910 | 9A | 3NO | 1NO | 1.8KW | 3.5KW |
| CJX2-0901 | 9A | 3NO | 1NC | 1.8KW | 3.5KW |
| CJX2-1210 | 12A | 3NO | 1NO | 2.5KW | 5KW |
| CJX2-1201 | 12A | 3NO | 1NC | 2.5KW | 5KW |
| CJX2-1810 | 18A | 3NO | 1NO | 3.5KW | 7.5KW |
| CJX2-1801 | 18A | 3NO | 1NC | 3.5KW | 7.5KW |
| CJX2-2510 | 25A | 3NO | 1NO | 5KW | 8.5KW |
| CJX2-2501 | 25A | 3NO | 1NC | 5KW | 8.5KW |
| CJX2-3210 | 32A | 3NO | 1NO | 6KW | 12KW |
| CJX2-3201 | 32A | 3NO | 1NC | 6KW | 12KW |
| CJX2-4011 | 40A | 3NO | 1NO 1NC | 8KW | 18.5KW |
| CJX2-5011 | 50A | 3NO | 1NO 1NC | 10KW | 24KW |
| CJX2-6511 | 65A | 3NO | 1NO 1NC | 12.5KW | 28KW |
| CJX2-8011 | 80A | 3NO | 1NO 1NC | 15.5KW | 37KW |
| CJX2-9511 | 95A | 3NO | 1NO 1NC | 18.5KW | 44KW |
