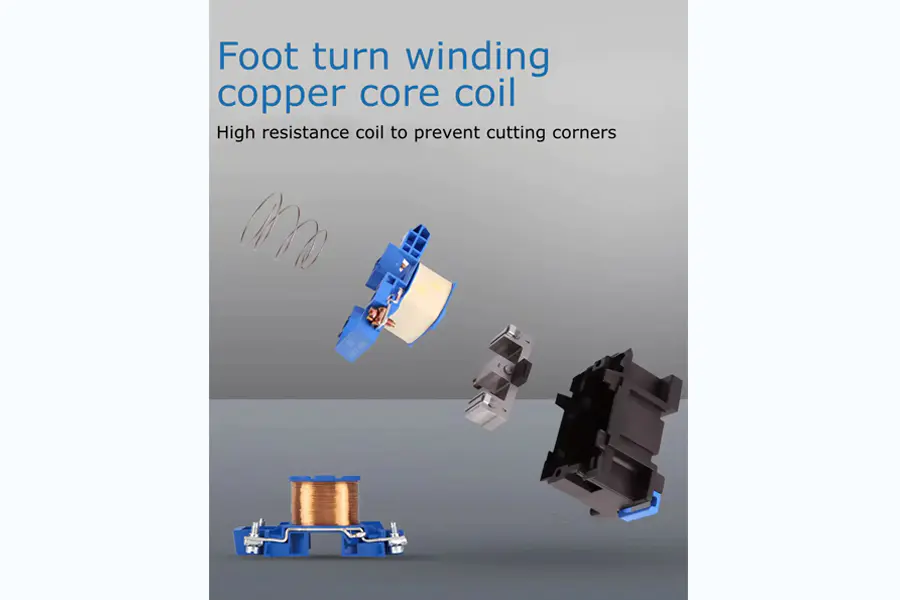

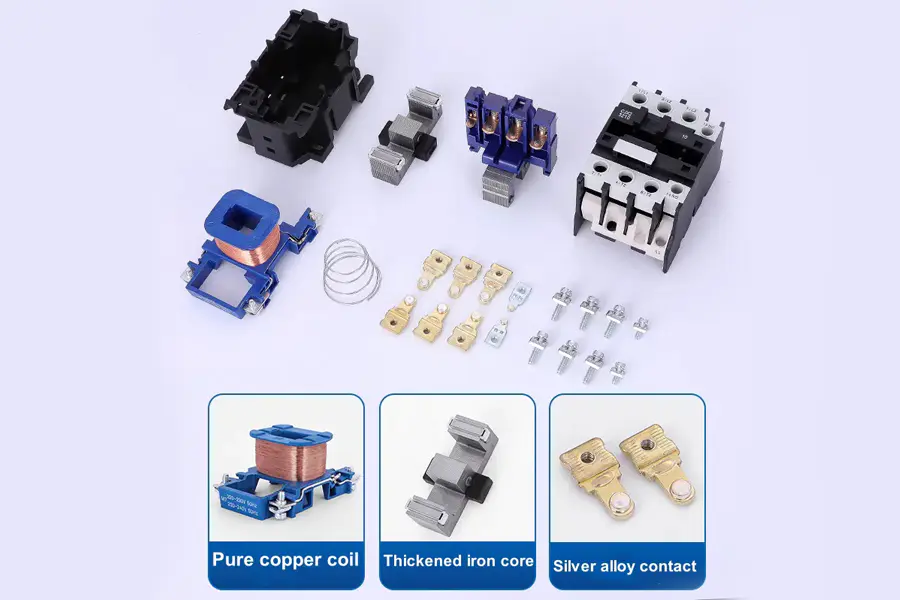

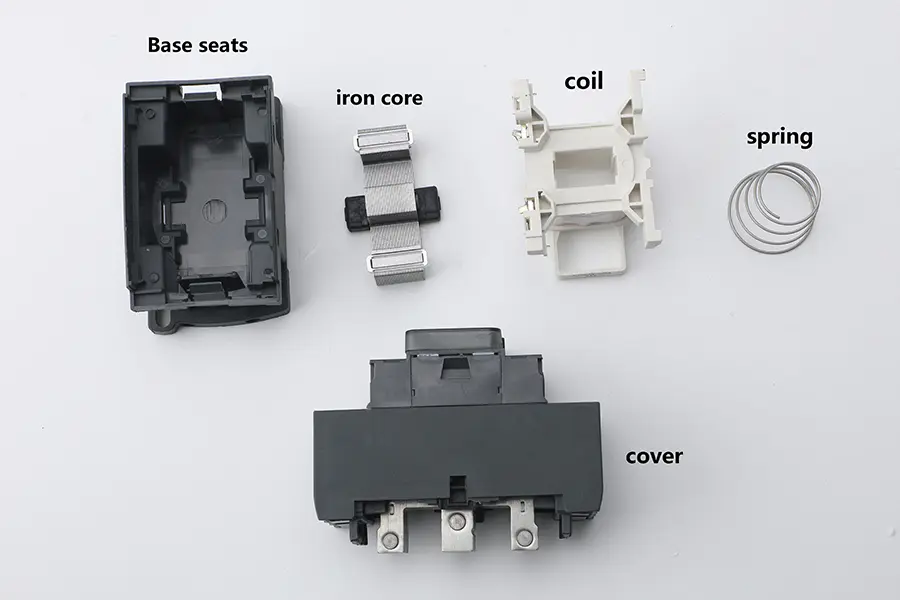

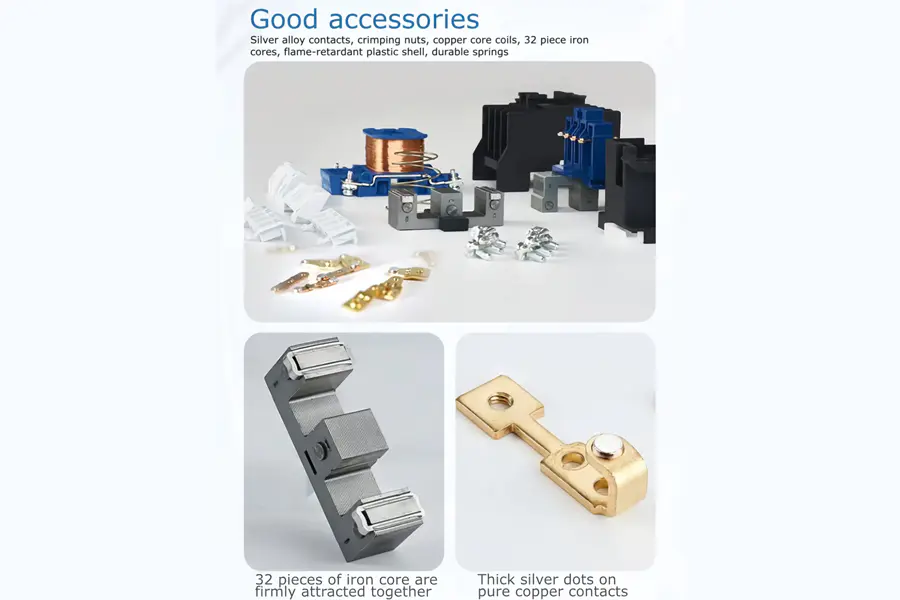

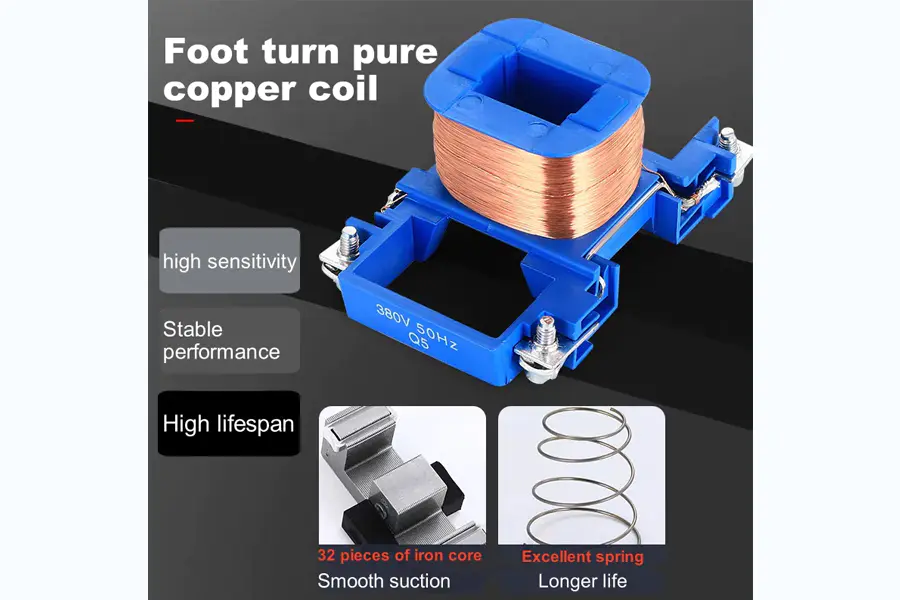

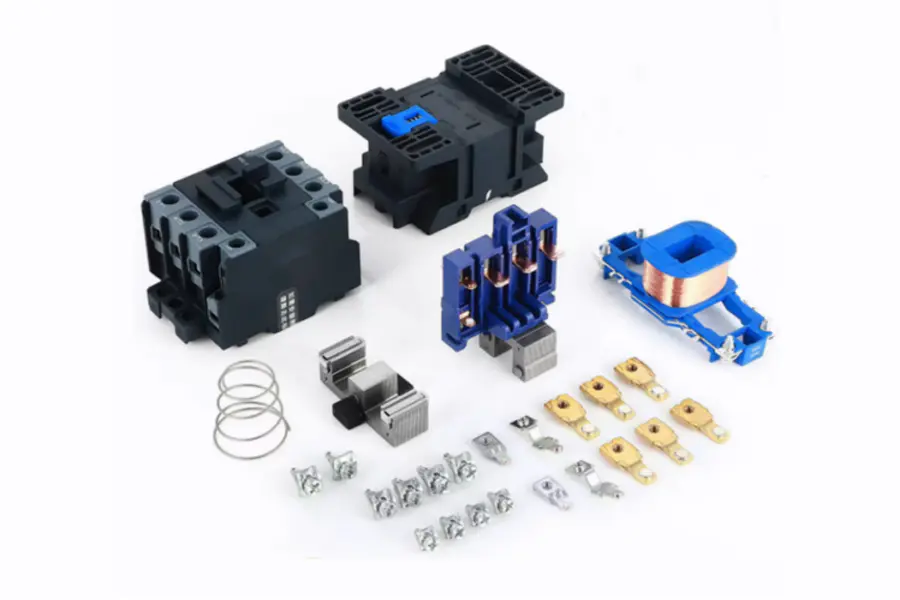

Apabila penyentuh AC ditenagakan, gegelung dalaman menghasilkan medan magnet, menyebabkan teras besi yang bergerak dan teras besi pegun menarik antara satu sama lain. Pergerakan ini memacu sistem sesentuh untuk terlibat dengan sesentuh pegun, melengkapkan litar. Apabila gegelung dinyahtenagakan, daya tarikan hilang, dan spring set semula mengangkat teras besi yang bergerak, memisahkan sesentuh dan memutuskan litar.
 | |
 | |
 | |
-
Project Cases
-
Project Cases
-
Project Cases
-
Project Cases
-
Project Cases
| Kuasa maksimum motor elektrik AC 0≤55°C,400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 |
| Model produk (rajah garis AC) | AX09 | AX12 | AX18 | AX25 | AX32 | AX40 | AX50 | AX65 | AX80 |
| AC-3 semasa bekerja diberi nilai 0≤55°C,400V | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 |
| AC-1 semasa berkadar 0≤55°C,400V | 22 | 25 | 27 | 32 | 55 | 60 | 100 | 115 | 125 |
| Jenis Model | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 | |
| Arus kerja berkadar (A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
| Motor tiga fasa AC－3 aras (kw) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | - | - | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | - | - | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 | |
| RatedheatingcurrentIth(A) | 20 | 20 | 30 | 32 | 40 | 50 | 60 | 80 | 125 | 125 | |
| Jangka hayat elektrik (10000 kitaran) | AC3 | 100 | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 60 |
| AC4 | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 | |
| Jangka hayat mekanikal (10000 kitaran) | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 | |
| Model kenalan | 3P NO | 3P NC NO | |||||||||
| Model | Arus berkadar (A) | Kenalan utama | Kontak bantu | Kuasa beban satu fasa (kW) | Kuasa beban tiga fasa (kW) |
| CJX2-0910 | 9A | 3NO | 1NO | 1.8KW | 3.5KW |
| CJX2-0901 | 9A | 3NO | 1NC | 1.8KW | 3.5KW |
| CJX2-1210 | 12A | 3NO | 1NO | 2.5KW | 5KW |
| CJX2-1201 | 12A | 3NO | 1NC | 2.5KW | 5KW |
| CJX2-1810 | 18A | 3NO | 1NO | 3.5KW | 7.5KW |
| CJX2-1801 | 18A | 3NO | 1NC | 3.5KW | 7.5KW |
| CJX2-2510 | 25A | 3NO | 1NO | 5KW | 8.5KW |
| CJX2-2501 | 25A | 3NO | 1NC | 5KW | 8.5KW |
| CJX2-3210 | 32A | 3NO | 1NO | 6KW | 12KW |
| CJX2-3201 | 32A | 3NO | 1NC | 6KW | 12KW |
| CJX2-4011 | 40A | 3NO | 1NO 1NC | 8KW | 18.5KW |
| CJX2-5011 | 50A | 3NO | 1NO 1NC | 10KW | 24KW |
| CJX2-6511 | 65A | 3NO | 1NO 1NC | 12.5KW | 28KW |
| CJX2-8011 | 80A | 3NO | 1NO 1NC | 15.5KW | 37KW |
| CJX2-9511 | 95A | 3NO | 1NO 1NC | 18.5KW | 44KW |
